CNC Box Parametric CAD Files

For the manufacturing guide, click here.

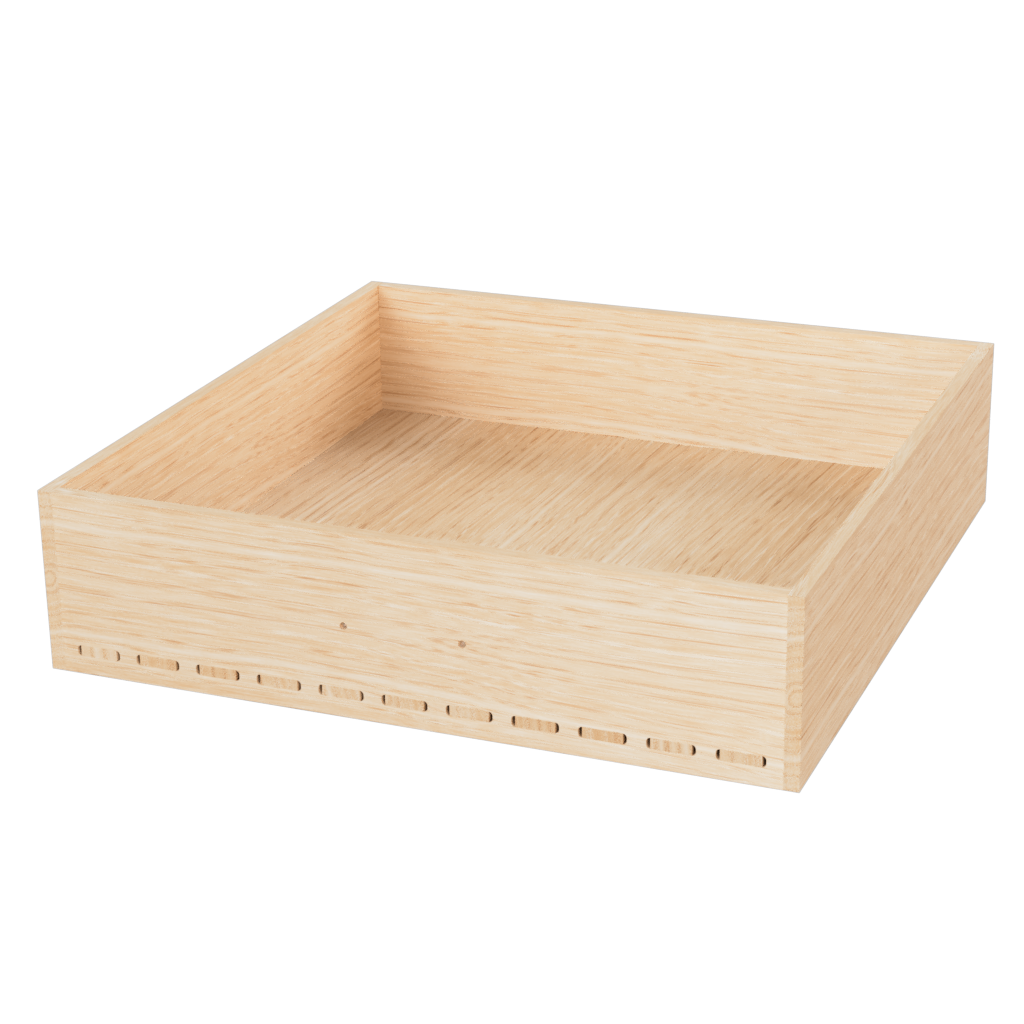

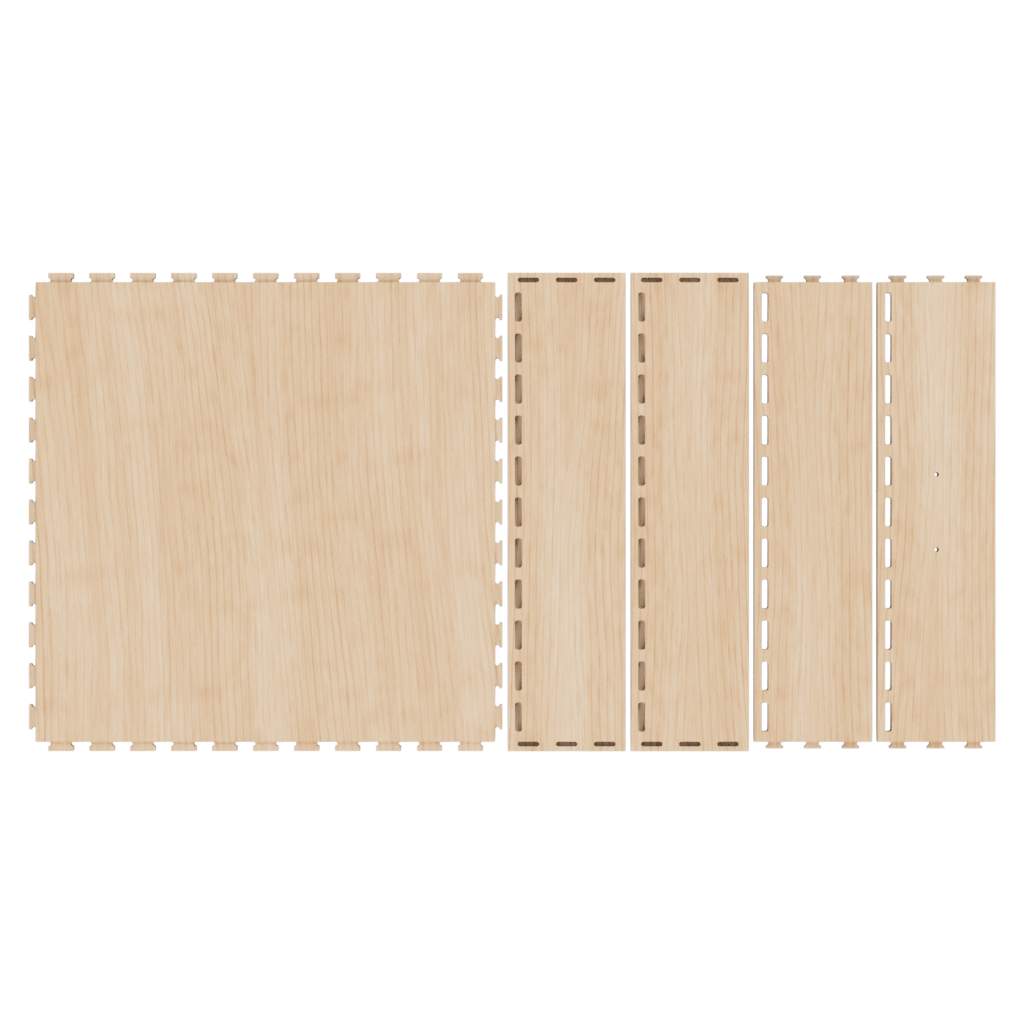

This Autodesk Fusion parametric file (.f3d) will enable you to create a custom-sized box with ease! This design was created specifically for effortless CNC manufacturing, requiring only one straight endmill in one flat setup—eliminating the need to flip or relocate the workpiece. With just a few clicks, you can adjust the length, width, depth, material thickness, and numerous other parameters. A few more clicks will automatically generate the CAM toolpaths. Since the joinery is only visible on the front and the back, this type of box is especially ideal for creating drawer boxes and as such is compatible with both side mount and undermount drawer slides.
