Hermes Dust Boot Maker Files

See the Hermes Dust Boot assembly guide here. See the Hermes Dust Boot design journey here.

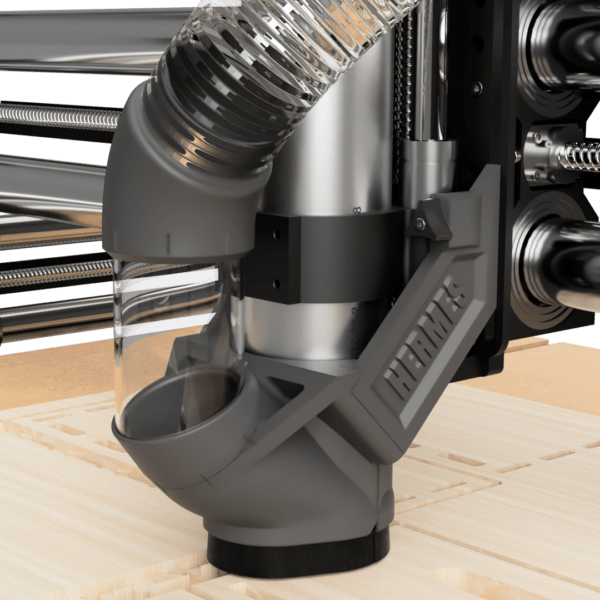

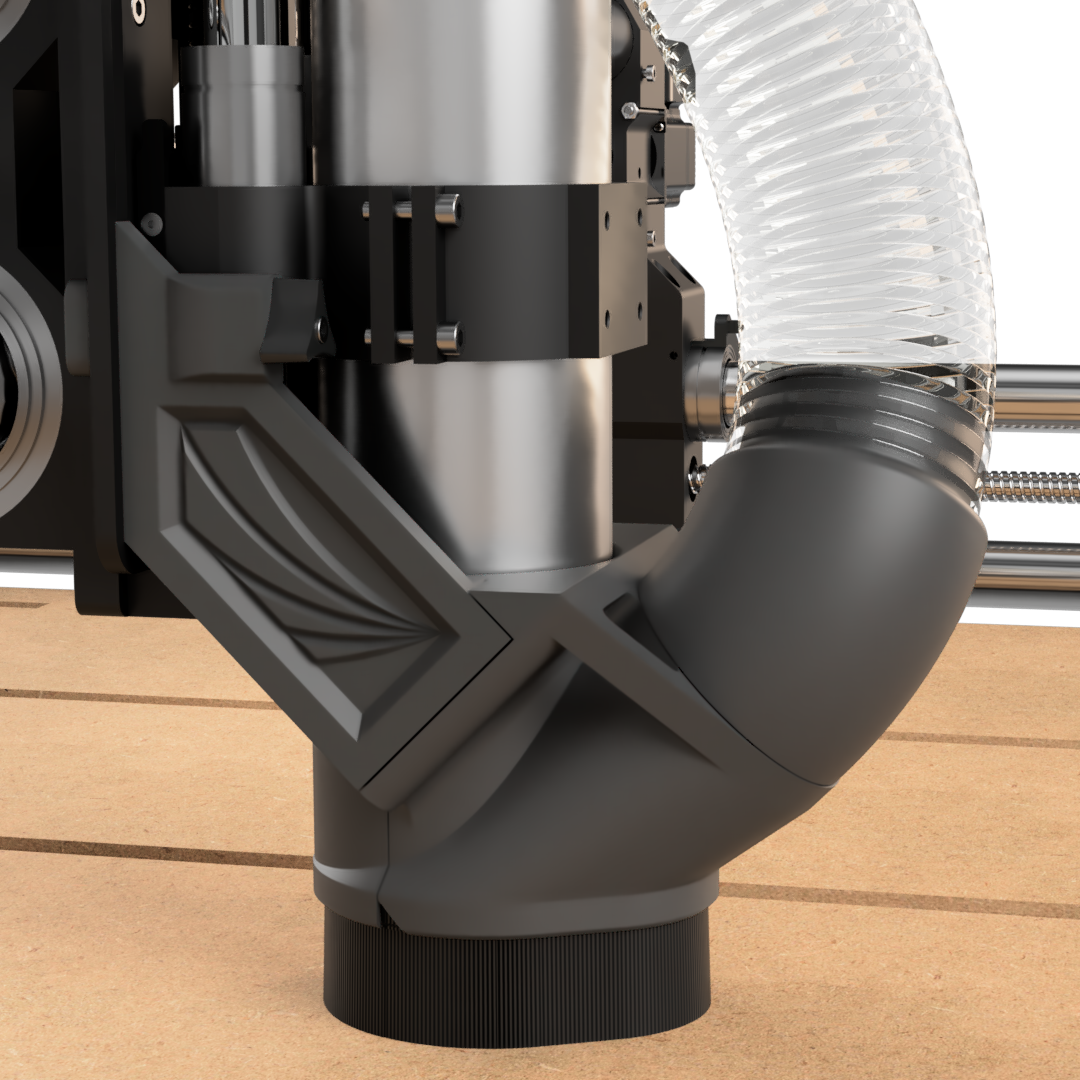

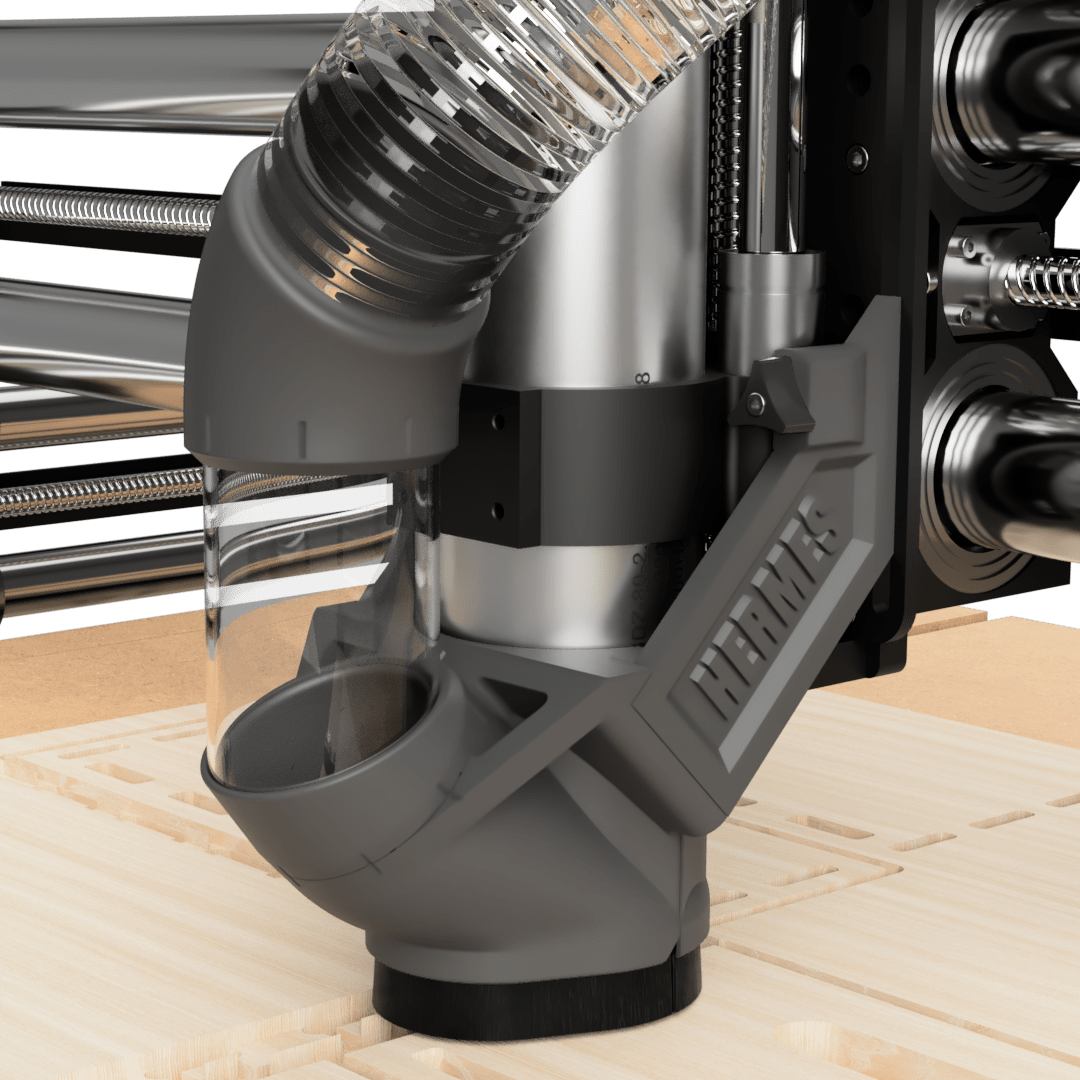

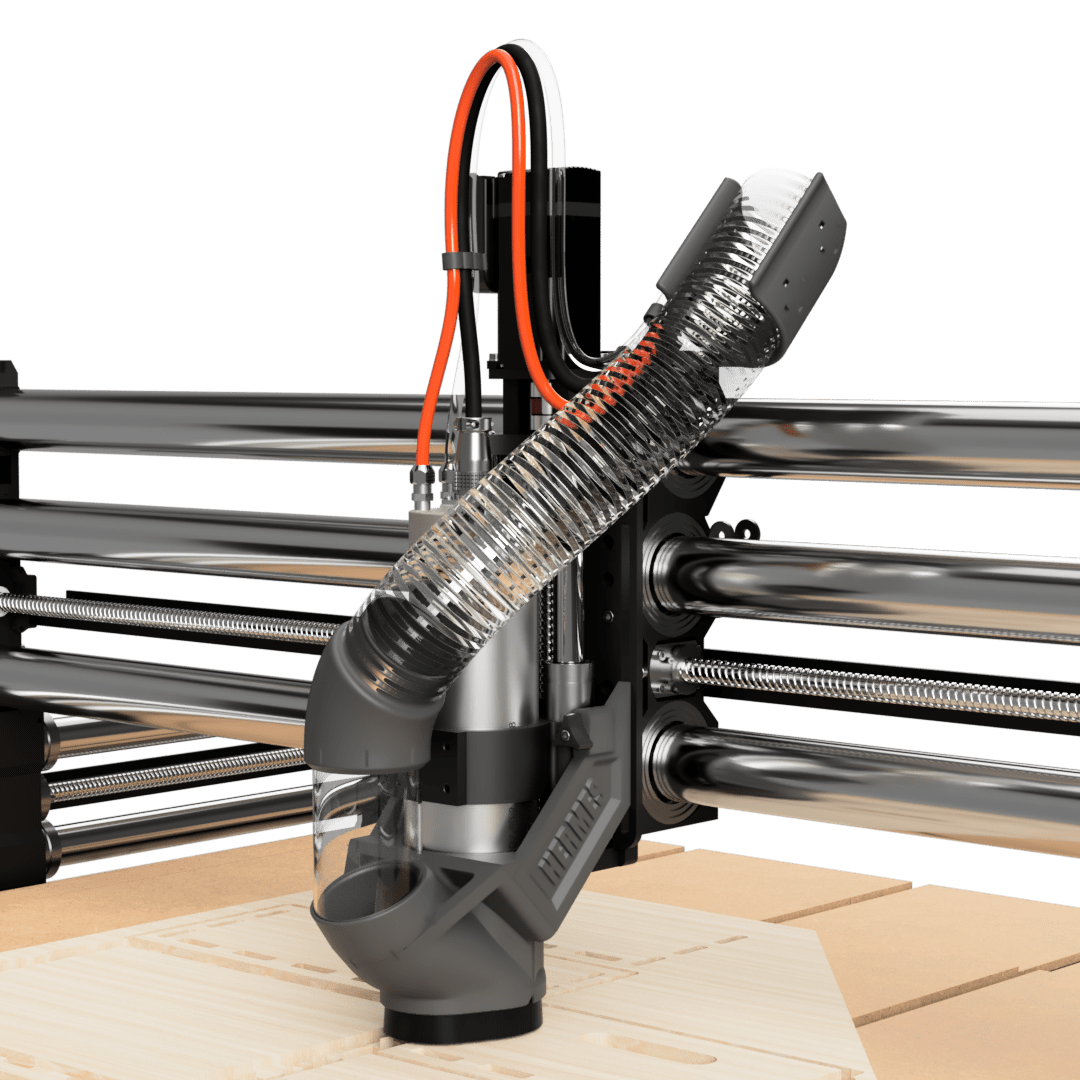

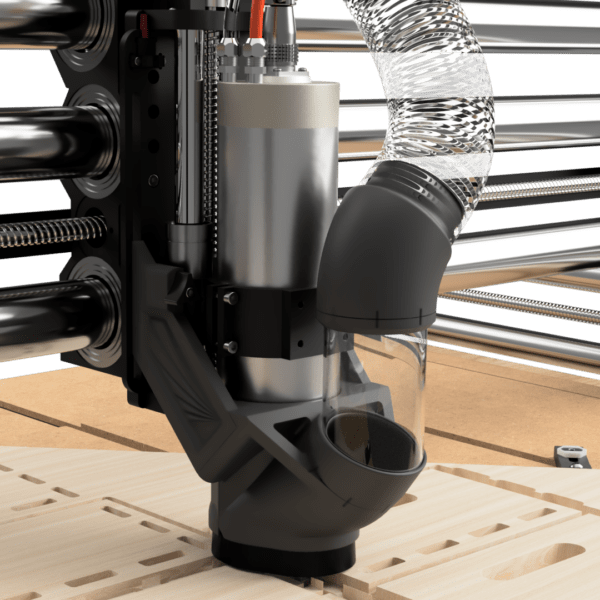

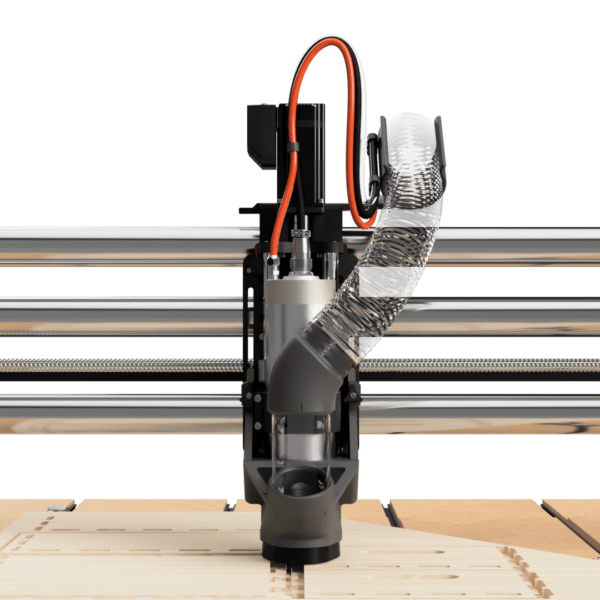

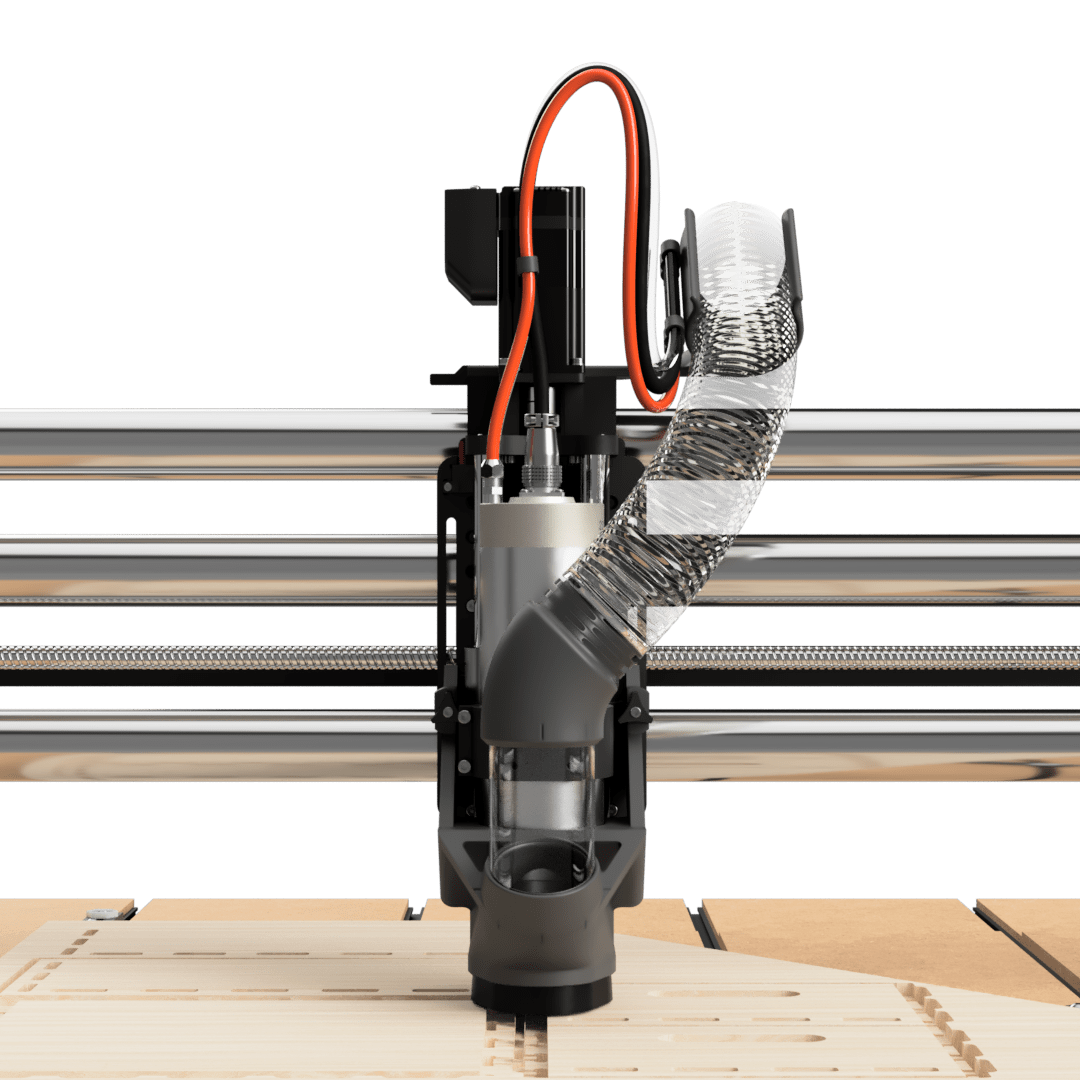

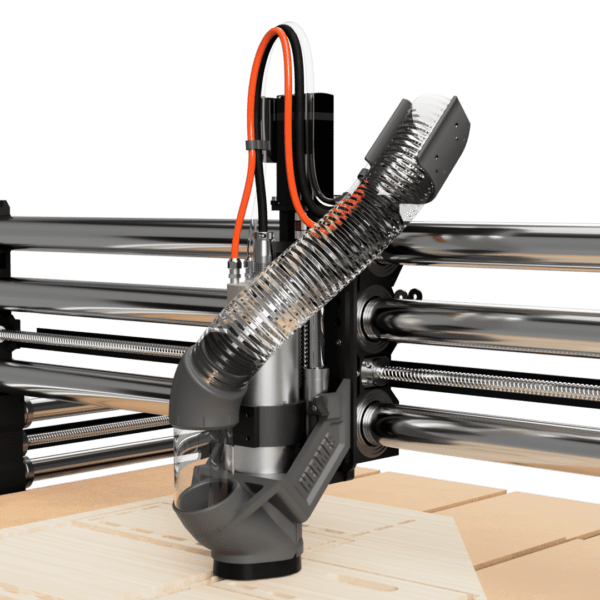

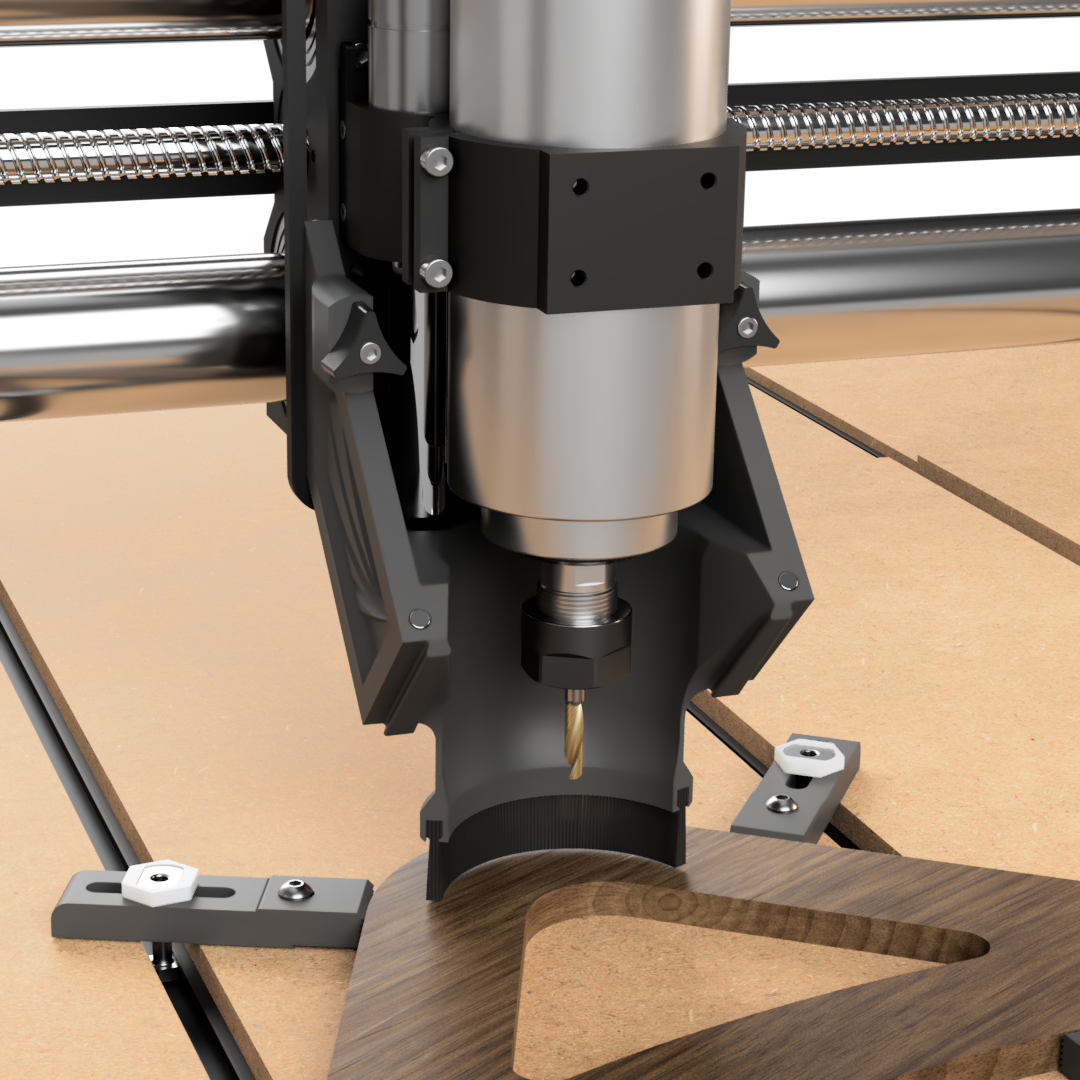

The Hermes Dust Boot is a front-mount dust boot that allows for unparalleled access to the spindle for bit changes while still maintaining full-bore flow for the dust hose. Most dust boots on the market today either have restricted flow paths resulting in clogging and subpar performance, or bulky and cumbersome attachments that make bit changes difficult and time-consuming. For the first time, it isn’t necessary to compromise between performance and usability.

Unlike other fixed-height (constant-Z) dust boots, the Hermes Dust Boot does not require bit-specific adapter plates to maximize suction at the bit. Instead, the Hermes extends upwards and seals against the spindle body. Say goodbye to the setbacks caused by broken plates and poor suction. The Hermes performs the same whether you are using a 2″ surfacing bit or a 1mm endmill.

Hermes Demo:

Features:

• Toolless adjustment and removal
• Easy and effective hose management
• Compatible with Onefinity Suckit hardware and brushes
• Fully illustrated assembly guide
• Watch the cut in action with the optional inline View Portal accessory

Included Printable Files:

• Quick-adjust Z-Axis Mount
• Removable Dust Shoe with easily replaceable bristles
• Magnetic Hose Adapter using the WDM7557 Standard
• X-Carriage Hose Clip

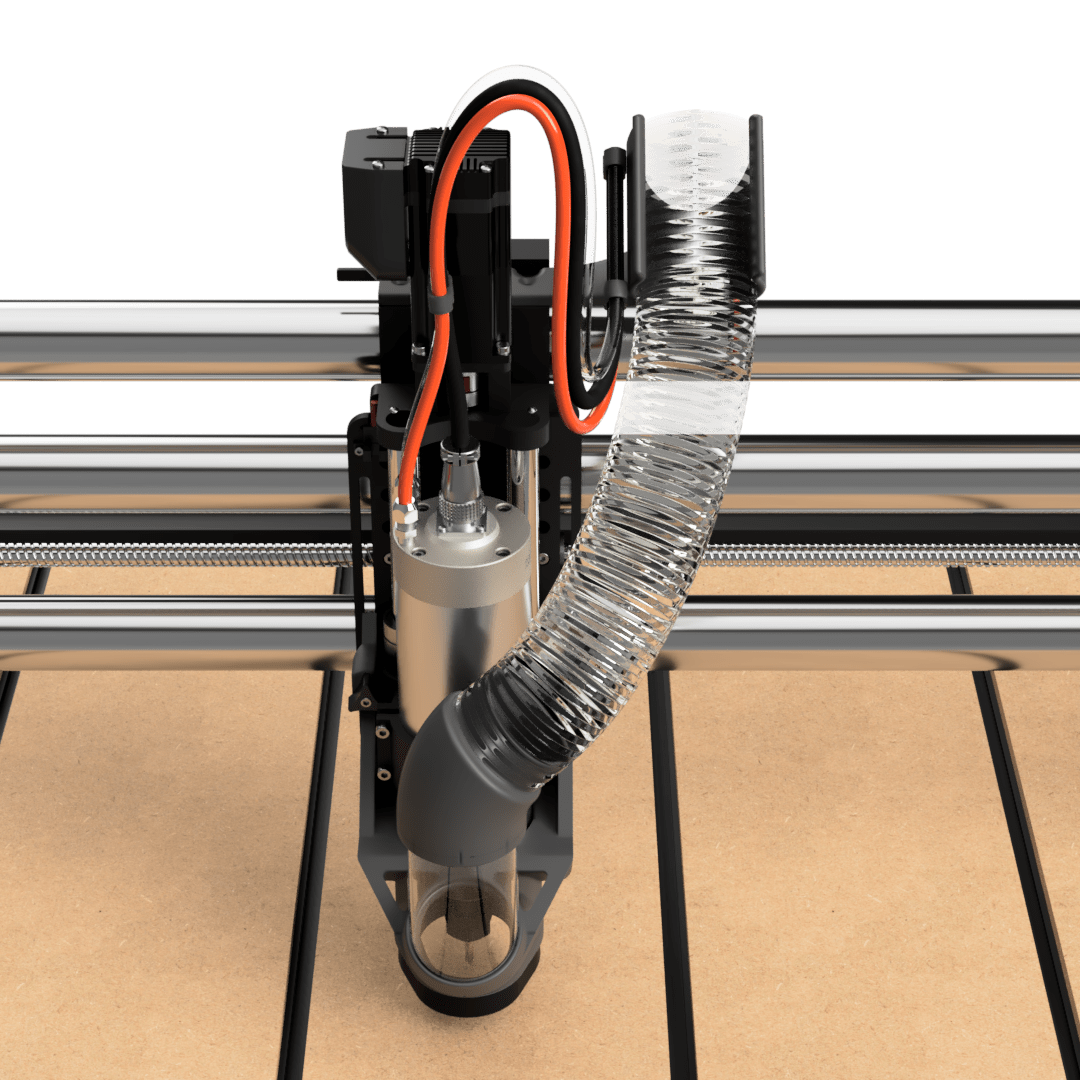

• Optional Inline View Portal Accessory
• Knob Adapters and Printable Nuts

Additional Required hardware:

• 1kg 3D Printer Filament (clear PETG recommended if using the View Portal)
• (2) Onefinity Suckit 55mm Knobs
• Onefinity Suckit Brushes or McMaster 1469N14/1469N15
• (36) 6mm x 3mm Neodymium magnets
• (Optional) 65mm OD x 61mm ID x 120mm L Acrylic Tube + (32) 6mm x 3mm Neodymium Magnets
